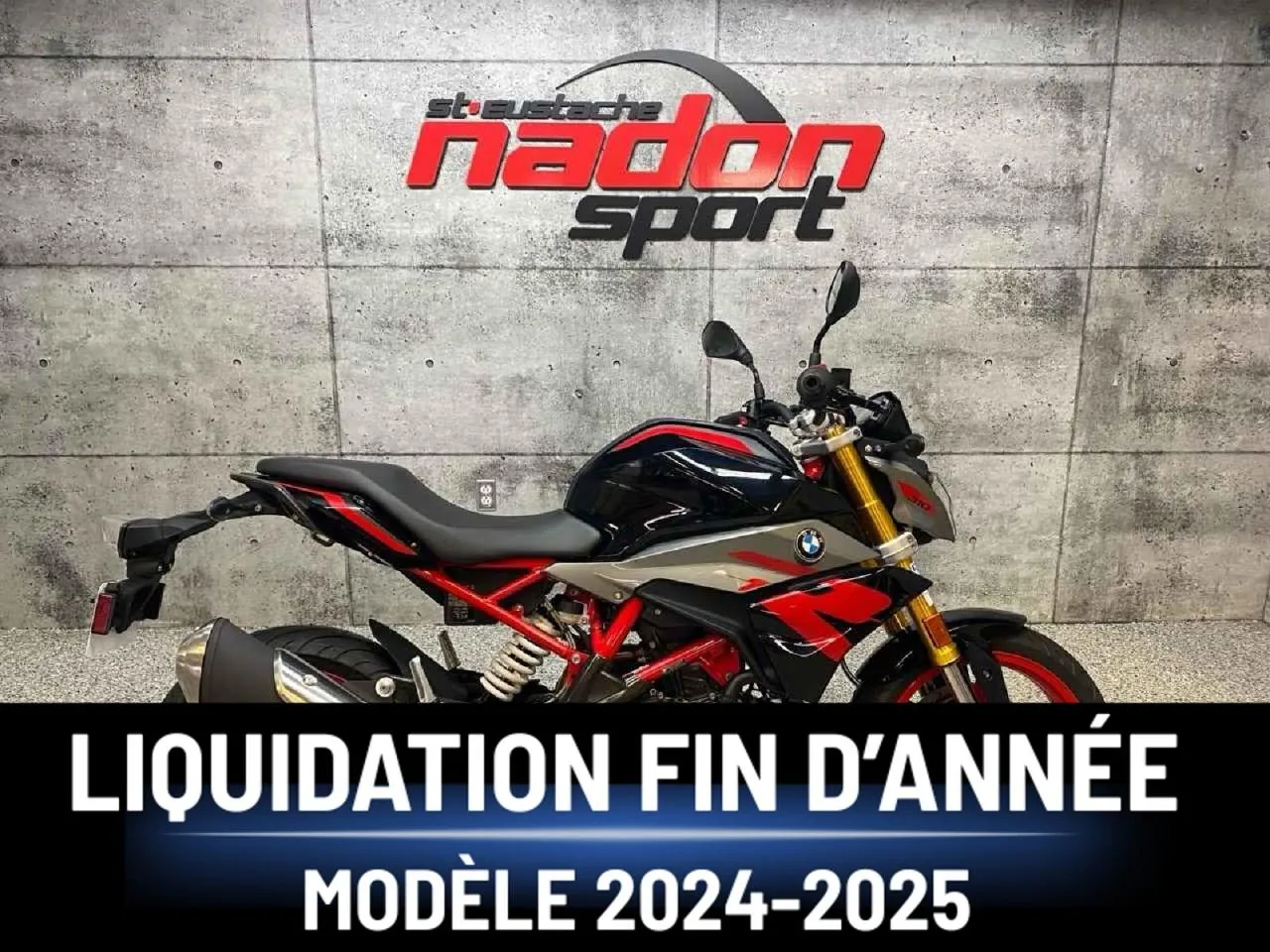

BMW 2024 G310R

SPECIFICATION

Color	Passion
Weight	345 kg
Engine type	Single-cylinder four-stroke water-cooled with four valve cores per cylinder operated by the swing lever, two overhead camshafts and wet sump lubrication
Tank capacity	11 l

Electrical equipment

Battery	12 V/8 Ah, maintenance-free
Alternator	Three-phase alternator, 308 watts

Warranty

Warranty	We offer you 36 months of peace of mind.

Dimensions / weight

Height (without mirrors)	1,080 mm
Length	2,005 mm
Reserve	approx. 1 l
Payload (with standard equipment)	181 kg
Width (with mirrors)	849 mm

Chassis / brakes

Rear tires	150/60 R17
Front brake	Single disc brake, diameter 300 mm, four-piston radial brake caliper
Wheelbase	1,380 mm
Wheels	Casting
Steering head steering head angle	64.9°
Front / rear travel	140 mm / 131 mm
Rear brake	Single-disc brake, diameter 240 mm, 1-piston floating caliper
Hunting	114 mm
Front wheel guidance / suspension	Upside-down fork, slider diameter 41 mm
Rear rim dimensions	4.00 x 17''
Rear wheel guidance / suspension	Tightened die-cast aluminum swingarm, directly articulated central spring-shock absorber combination, preload of the adjustable spring
Front rim dimensions	3.00 x 17''
Abs	BMW Motorrad ABS
Frame	Tubular trellis
Front tire	110/70 R17

Performance / consumption

Maximum speed	143 km/h
CO² emissions according to wmtc	80 g/km
Fuel type	Super unleaded, minimum octane number 91 (RON)
Consumption for 100 km according to wmtc	3.5 l

Transmission

Gearbox	6 gears with clutch control
Clutch	Multi-disc oil bath (anti-dribble) with self-reinforcement
Secondary transmission	Endless catalytic converter with lambda regulation, Euro 5 anti-pollution standard
Displacement	313 cm³
Bore x stroke	80 mm x 62.1 mm
Power supply	Electronic injection
Volumetric ratio	10.9
Max. torque	28 Nm at 7500 rpm
